GROUND AND COASTAL SURVEILLANCE SYSTEMS FOR BORDER GUARD AND FIRE CONTROL SYSTEM FOR ARTILLERY (MTLB - V)
The system is designed and implemented according to military standard specifications.
It achieves border guard requirements by detecting and tracking all ground and coastal targets, increasing the range of survey.
It consists of RADAR, thermal sight, and daylight camera mounted on a telescopic mast.
The system is mounted on an amphibious armored vehicle for high maneuverability, working 24/7.
Technical Specifications
IR Channel - Amphibious Armored Vehicle Module MTLB-V
|
Parameter |
Specification |
|
Weight |
12,600 Kg |
|
Length |
6.65 m |
|
Width |
2.85 m |
|
Height |
1.56 m |
|
Max Road Speed |
61.5 km/h |
|
Max Water Speed |
4-6 km/h |

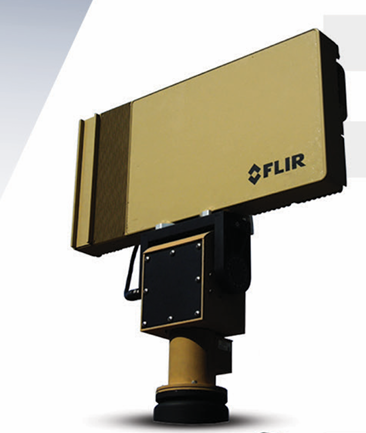

Radar R20SS - Maximum Detection Range
|
Target |
Detection Range |
|
Pedestrian |
10 km |
|
Vehicle |
30 km |
|
Vessel |
55 km |
Pan and Tilt Head
|
Parameter |
Specification |
|
Horizontal Motion |
360° |
|
Vertical Motion |
0.5° |
Telescopic Mast
|
Parameter |
Specification |
|
Maximum Altitude |
10 m |
|
Minimum Altitude |
2 m |
|
Weight |
85 kg |
|
Maximum Weight Lifted |
110 kg |
Observation System
Thermal Sight
|
Parameter |
Specification |
|
Wavelength |
8-12 μm |
|
Field of View (FoV) |
Wide: 25° (H) x 19° (V) with 37mm lens |
Sight Range (Narrow FOV - km)
|
Target |
Detection |
Recognition |
Identification |
|
Man |
12.5 km |
4.5 km |
2.3 km |
|
Vehicle |
18.7 km |
9 km |
5.3 km |
Daylight Camera
|
Parameter |
Specification |
|
Type |
1/4" color CCD |
|
Field of View |
42° ± 1.6° continuous |
Laser Range Finder
|
Parameter |
Specification |
|
Laser Type |
Eye-safe |
|
Wavelength |
1570 nm |
|
Range |
80m - 20 km |
