Integerated Observation System

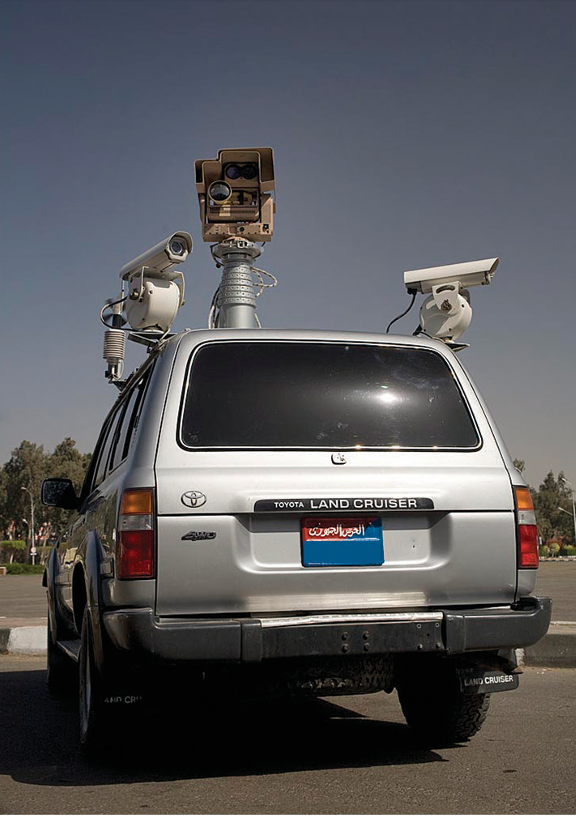

- The commanding, observation and electro - optical mobile center has been designed and implemented to be mounted on a 4x4 vehicle. It operates as a mobile command center to carry out electro - optical day / night observation in all different and difficult viewing conditions.
- The system can transmit the situation, as a live video image to the Operation Center. In addition, it provides a 72 hours recording of events with an option of re - displaying it to allow analysis of events and summing up all lessons learned in various situations.
- The system provides a communication system that allows commanding controlling of forces together with handling of data and maps.
Mobile Commanding and Control Center System consists of
- The main Observation unit (Goniometer with electronic compass and GPS - Day camera with far focal range - Thermal camera - Laser range finder - Control unit - Display).
- Monitoring unit for commander (color camera - 5.5 - inch screen).
- Telescopic Mast.
- GPS.
- Device to receive and locate targets via satellite.
- Military Computer.
- IP Camera.
- Central computer program to manage instant surveillance.
- Power management unit.
|
· Main Observation Unit |
Specifications |
|
Azimuth |
± 400° |
|
Elevation |
± 27° |
|
Thermal Camera |
Three positions zooming |
|
Range of Targets |
Tank: 10 km |
|
Targets Storage Possibility |
Specifications |
|
Display |
10" |
|
Laser Range Finder |
Max range 20 km ± 5m |
|
Commander’s Monitoring Unit |
Specifications |
|
|
Zoom |
x25 |
|
|
Direction of Horizontal Angle |
0° : 440° |
|
|
Elevation Angle |
0° : 240° |
|
|
Adjustment of Image Resolution |
Auto and Manual |
|
|
Telescopic Mast |
Specifications |
|
|
Height |
1m : 10m |
|
|
IP Camera |
Specifications |
|
Movable Image |
30 frames / sec |
|
Fixed Image Resolution |
352 x 288 pixels |
|
Additional Features |
Remote control |
